Huaao Rock Wool Sandwich Panel for Dust-Free Workshops High-Density Insulation Board Soundproof Walls sandwich panel walls

Marka Adı:	HUAAO
Model Numarası:	HE003
MOQ:	100㎡
Fiyat:	US$8-9.2/㎡
Paketleme Ayrıntıları:	1. Köpük Koruması 2. Ahşap Çerçeve Desteği 3. Forklift Yükleme ve Boşaltma 4. Konteyner Yükleme
Ödeme Şartları:	L/C, T/T, D/A, D/P, T/T

Detay Bilgi

Ürün Tanımı

Detay Bilgi

Menşe yeri:

Foshan Guangdong Çin

Sertifika:

CE/ISO/Fireproof/ISO/UL

Panel tabakası malzemesi:

Galvanizli çelik

Ürün adı:

MGO/Rockwool/Silika/PU/Köpük Sandviç Panel

Makine yapımı panel

Panel sayfası kalınlığı:

0.376; 0.426; 0.476; 0.526 mm

Panel kalınlığı:

50mm, 75mm, 100mm.

Genişlik:

980mm, 1180mm

Uzunluk:

Özelleştirilmiş

Çekirdek malzeme:

MGO/Rockwool/Silika/PU/Köpük Sandviç Panel

Renk:

Özelleştirilmiş

stok:

Stoklar tükendi

Tanım:

GMP darbe direnci Mgso sandviç panel temiz oda duvar paneli gıda fabrikası hastane binası

Yetenek temini:

4000 metrekare/gün

Vurgulamak:

Huaao rock wool sandwich panel

dust-free workshop insulation board

soundproof sandwich panel walls

Ürün Tanımı

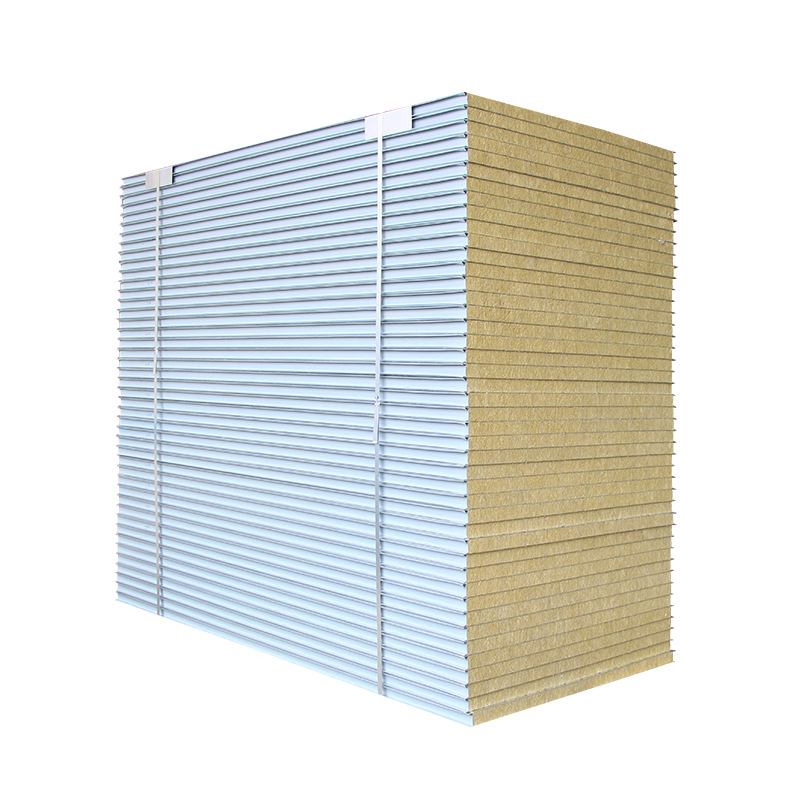

Huaao Rock Wool Sandwich Panel for Dust-Free Workshops High-Density Insulation Board Soundproof Walls sandwich panel walls

This product is a high-density rock wool core sandwich panel from Huaao, designed specifically for constructing the walls of dust-free workshops and other industrial facilities where fire safety, thermal insulation, and superior soundproofing are critical requirements.

Critical Conclusions:

Material is Ideal for Stated Use: Rock wool is arguably the best core material for this combination of needs. Its non-combustible (A1 fire rating) nature makes it a safe choice for industrial settings, and its soundproofing capabilities are a major advantage over other insulation types.
"Dust-Free" Application is Achievable: The steel-faced panels provide a smooth, non-shedding, and cleanable surface. However, achieving a truly "dust-free" environment depends just as much on the quality of the installation (ensuring all seams and penetrations are perfectly sealed) as it does on the panels themselves.
"High-Density" is a Key Spec: This is not just a marketing term; it directly translates to better structural performance, durability, and acoustic properties. A buyer should request the exact density value (e.g., 100kg/m³).
Omitted Specification: The description lacks the fire rating certificate (e.g., EN 13501-1 Class A1) and the thermal conductivity (Lambda value - λ), which are essential for technical evaluation.

Product Specifications

Attribute	Value
Panel Sheet Material	Galvanized steel
Product Name	MGO/Rockwool/Silica/PU/Foam sandwich panel
Type	Machine-made panel
Panel Sheet Thickness	0.376; 0.426; 0.476; 0.526 mm
Panel Thickness	50mm, 75mm, 100mm,Customized
Width	950mm ,980mm, 1180mm
Length	Customized
Core Material	MGO/Rockwool/Silica/PU/Foam sandwich panel
Color	Customized

Product Description

GMP impact resistant MGSO sandwich panel is a specialized clean room wall panel solution for food factories and hospital buildings. This innovative panel features a core material made from magnesium sulfate and magnesium oxide using lamination technology, creating an environmentally friendly product with superior performance characteristics.

Key Parameters

Type	Mechanism panel
Width	950mm, 1150mm
Model	HE003
Fire Rating	60min (A1 grade)
Available Colors	Blue, off-white, green

Product Advantages

A1 grade fire rating for superior safety
Premium galvanized steel/stainless steel facing
Exceptional strength and bending resistance
Excellent thermal insulation and soundproofing
Waterproof and moisture-resistant properties
High smoothness surface finish
Lightweight yet durable construction
Environmentally friendly materials

Manufacturing Capabilities

Annual production capacity: 40,000㎡
800 employees across 6 factories
¥1 billion annual sales
World's first automatic production line (6-8x more efficient than traditional methods)
Raw materials sourced from Fortune 500 suppliers

Applications

Ideal for various high-cleanliness environments including:

Hospitals and medical facilities
Pharmaceutical manufacturing
Electronics production
Food and beverage processing
Cosmetics manufacturing
Aerospace facilities
Laboratories and research centers

Note: This panel can be used for both wall and ceiling applications in cleanroom environments.

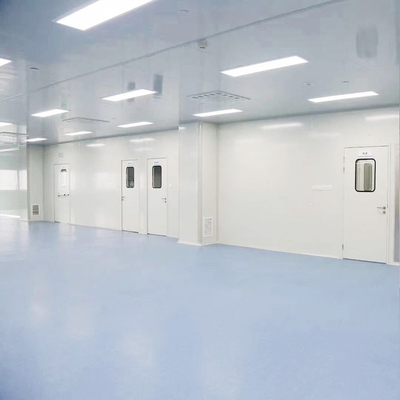

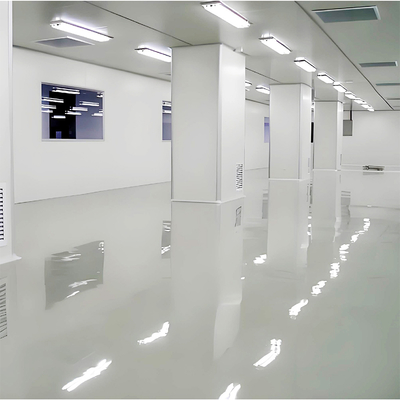

Project Photos

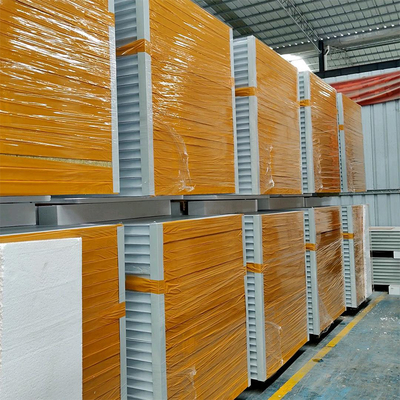

Company Facility

Frequently Asked Questions

Q: What is your core competitive advantage?

A: We partner with Fortune 500 raw material suppliers and operate the world's first automatic production line, delivering 6-8x greater efficiency than traditional methods. Our 800-employee operation across 6 factories ensures both quality and cost-effectiveness.

Q: Do you provide installation services?

A: While we don't have our own construction team, our panels feature excellent design for easy installation. We provide detailed instructions, installation videos, and can dispatch professional supervisors to your site.

Q: What is your product range?

A: We offer over 100 different products including cleanroom sandwich panels, doors, windows, aluminum profiles, PVC flooring, and specialized cleanroom equipment.

Q: Can I request samples?

A: Yes, we provide free samples. Customers are responsible for freight costs.

Q: What are your payment terms?

A: Standard terms are 30% deposit by T/T with 70% balance before delivery. We're open to discussing alternative arrangements for long-term partnerships.
