Huaao Free Design Easy to Install Durable GMP Standard Pharmacy Clean Room With MGO SIP Mechanism Rock Wool Sandwich Panel

Marka Adı:	HUAAO
Model Numarası:	HE007
MOQ:	100㎡
Fiyat:	US$6.55-7.55/㎡
Paketleme Ayrıntıları:	1. Köpük Koruması 2. Ahşap Çerçeve Desteği 3. Forklift Yükleme ve Boşaltma 4. Konteyner Yükleme
Ödeme Şartları:	L/C, T/T, D/A, D/P, T/T

Detay Bilgi

Ürün Tanımı

Detay Bilgi

Menşe yeri:

Foshan Guangdong Çin

Sertifika:

CE/ISO

Panel tabakası malzemesi:

Galvanizli çelik

Ürün adı:

MGO/Rockwool/Silika/PU/Köpük Sandviç Panel

Makine yapımı panel

Panel sayfası kalınlığı:

0.376; 0.426; 0.476; 0.526 mm

Panel kalınlığı:

50mm, 75mm, 100mm.

Genişlik:

980mm, 1180mm

Uzunluk:

Özelleştirilmiş

Çekirdek malzeme:

MGO/Rockwool/Silika/PU/Köpük Sandviç Panel

Renk:

Özelleştirilmiş

karakteristik:

Hafif, hızlı montaj, Isı yalıtımı

stok:

Stoklar tükendi

Tanım:

50-100 mm Yangına Dayanıklı A2 Levha Isı Yalıtımı Eps Sandviç Panel Makine Yapımı Temiz Oda Sandviç

Yetenek temini:

4000 metrekare/gün

Vurgulamak:

GMP standard pharmacy cleanroom panel

rock wool sandwich panel cleanroom

MGO SIP mechanism cleanroom panel

Ürün Tanımı

Huaao Free Design Easy to Install Durable GMP Standard Pharmacy Clean Room With MGO SIP Mechanism Rock Wool Sandwich Panel

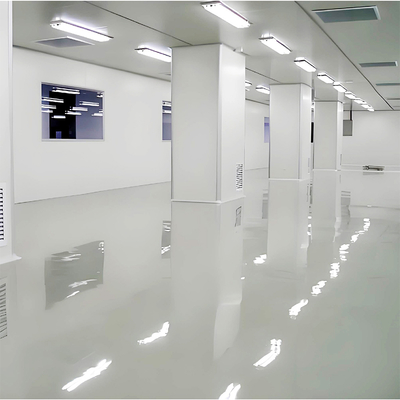

This product is a modular cleanroom system designed for pharmaceutical pharmacies. Its key differentiator is the use of high-performance MGO board-faced Structural Insulated Panels (SIPs) with a rock wool core, making it exceptionally durable, fire-resistant, and well-insulated. It is marketed as being easy to install and compliant with GMP standards.

Product Specifications

Attribute	Value
Panel Sheet Material	Galvanized steel
Product Name	MGO/Rockwool/Silica/PU/Foam sandwich panel
Type	Machine-made panel
Panel Sheet Thickness	0.376; 0.426; 0.476; 0.526 mm
Panel Thickness	50mm, 75mm, 100mm,Customized
Width	950mm,980mm, 1180mm
Length	Customized
Core Material	MGO/Rockwool/Silica/PU/Foam sandwich panel
Color	Customized

Product Description

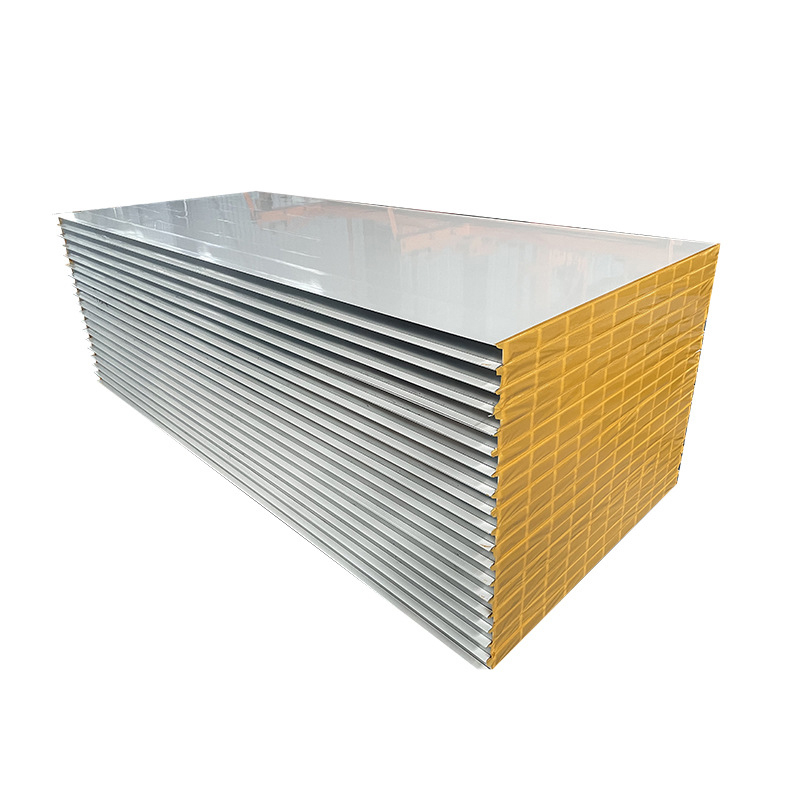

HUAAO Fireproof EPS Sandwich Panel is a machine-made cleanroom panel ideal for cold rooms and various industrial applications. The panel consists of three main components:

Core Material: Expanded polystyrene (EPS) foam providing excellent thermal insulation
Outer Layers: Metal sheets (steel or aluminum) or rigid materials like FRP for structural stability
Construction: Lightweight yet sturdy rectangular panels available in various thicknesses

Technical Parameters

Type: Mechanism panel
Width: 1150mm
Length: Customized
Weight: Baosteel/Lantian options
Panel thickness options: 50mm, 75mm, 100mm
Steel plate thickness options: 0.376-0.526mm (Stainless Steel: 0.5mm)
Core material density: 12-20 Kg/m³ (customizable)
Structure: Splicing of mouthpiece

Key Advantages

Fire Rating: A2 classification for enhanced safety
Thermal Performance: Excellent insulation properties
Lightweight: Easy to handle and install
Production Capacity: 40,000㎡ supply ability
Fire Resistance: Meets stringent safety standards
Sound Insulation: Reduces noise transmission
Durability: Long service life with minimal maintenance
Weather Resistance: Withstands harsh environmental conditions

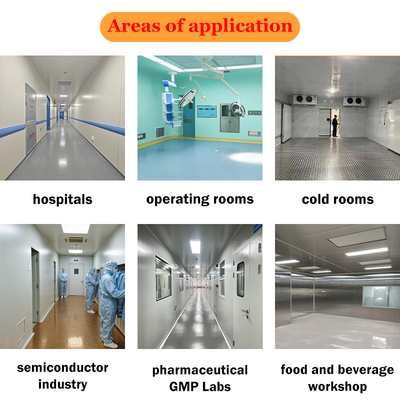

Applications

Widely used in various purification fields including:

Hospitals and laboratories
Pharmaceutical and electronics factories
New energy and aerospace facilities
Food and beverage production plants
Cosmetics manufacturing
Cold storage rooms

Note: When used as ceiling panel, it is not walkable.

Project Photos

Company Photos

Frequently Asked Questions

Q: How about your core competitiveness?

A: Our raw material suppliers are Fortune 500 companies, and we have 800 employees. We offer comprehensive technical support and after-sales service. With 5 strategically located factories and the world's first automatic production line, we achieve 6-8 times higher production efficiency than traditional methods, resulting in lower costs and higher quality.

Q: Do you have your own construction team?

A: While we don't have our own construction team, all our cleanroom panels and connected parts are designed for easy installation. We provide detailed instructions, installation videos, and can send professional supervisors to the site if needed.

Q: How many kinds of products do you have?

A: We currently offer over 100 different products, including cleanroom sandwich panels, doors, windows, aluminum profiles, PVC flooring, and various cleanroom equipment.

Q: Can you provide samples? Is it free or extra?

A: Yes, we can provide free samples, but we would appreciate freight collection.

Q: What are your terms of payment?

A: Standard terms are 30% T/T prepaid, 70% T/T before delivery. We can discuss alternative payment arrangements for ongoing cooperation.
